- dc5v 5m ws2801 32led m black pcb 5050 rgb led strip addressable
Brand Name: HCSOYES
LED Chip Brand: Epistar
Power Source: DC
Occasion: Living Room
LED Chip Model: SMD5050
Strip type: SMD
Power Consumption (W/m): 9W/1m
Average Life (hrs): 50000
Color Temp(K): RGB
Model Number: ws2801 rgb led strip ,IP30/IP65/IP67
Specifications (light beads / m): Other
LEDs Number/M: 32leds/m
Power Generation: Switch
DC5V WS2801 External 2801ic 5050 smd rgb strip 32leds / m Individually addressable Arduino development ambilight TV, 1 ic control 1 led + 4pin led connector
Below information will help you to use Arduino working with this product.
WS2801, 32 leds / meter, 3m/5m, BGR strip
A control circuit for the 4 pin
1: 5 V +
4: GND 5 V

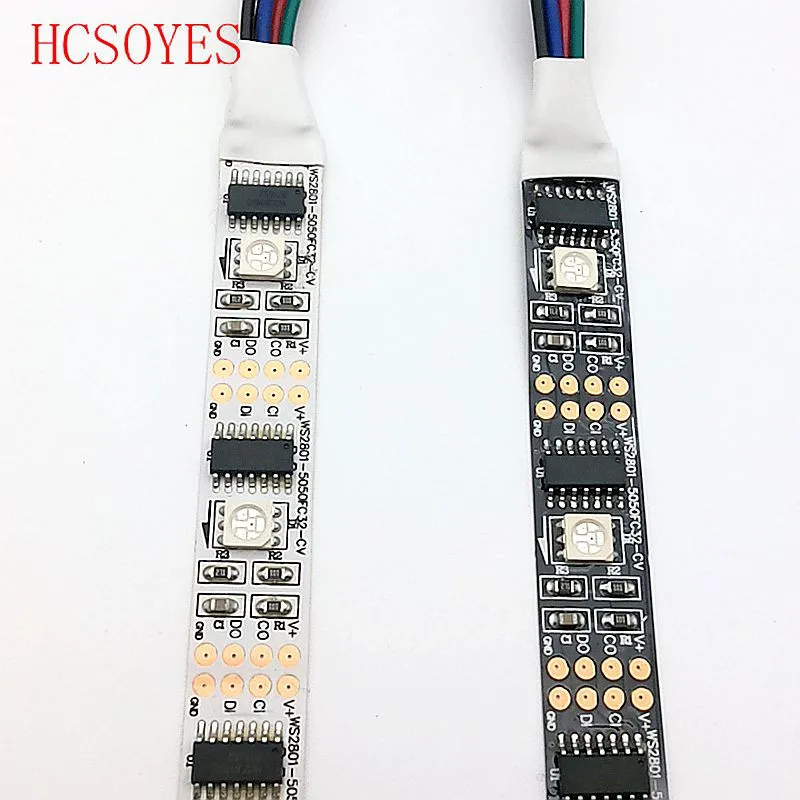

White : White PCB
Black : Black PCB

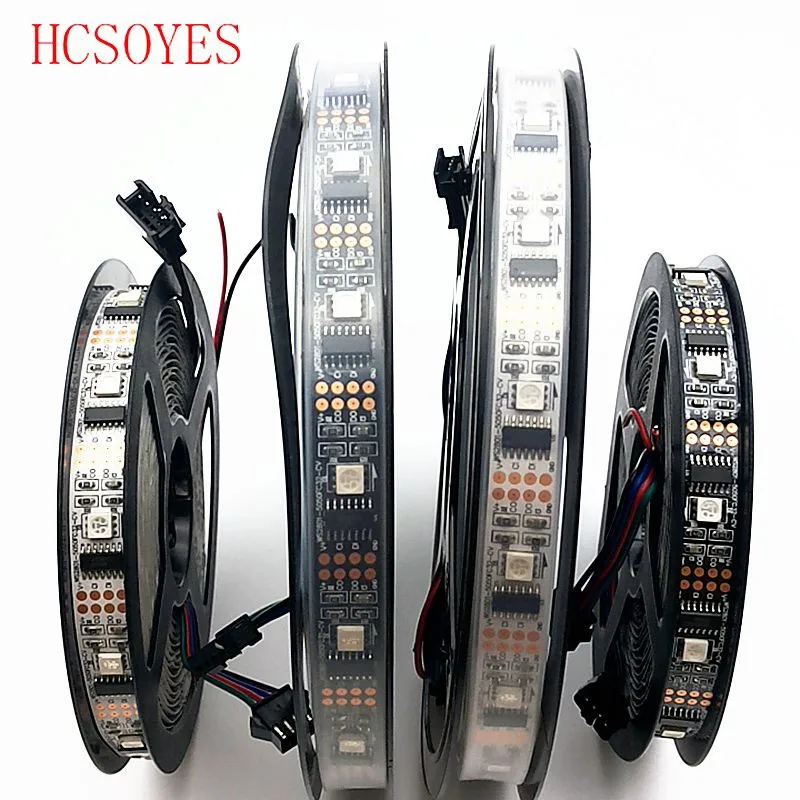

IP30: Non- waterproof
IP65: Waterproof in Silicon Coating
IP67: Waterproof SiliconTube
(1) working voltage: DC 5V
(2) LED Source: SMD 5050 RGB
(3) LED Chip: Epistar
(4) LED QTY: 32 LED / M
(5) IC QTY: 32 / M
(6) Power: 9W / M
(7) Grey scale: 256 / Color
(8) Cutability: 1 led / cutting (External 2801ic, 1 ic control 1 led)
(9) Beam Angle: 120 °
(10)Color Mode:133Pattern & 100 Speeds
(11) IP Grade: ip30 non -waterproof /IP65 Waterproof in Silicon Coating/ ip67 waterproof
(12)Dimension: 12 x 2.4mm
(13)Packaging: 3/5m / roll ws2801 rgb strip + 4 pin connector
(14)Warranty: 2 years
Use the programmable controller, Raspberry Pi or Arduino or T-1000S controller
DIY Arduino Gleaming TV!
